IVT VDMS14M 14.0 MP Electronic Video Microscope 1080P
Zoom: 1X-16X Magnifications
Option: WIFI Antenna SMA
Screen: Red
Battery: None
Camera: 1080P30(Clear)、720P60(Smooth)
Model: VDMS14M

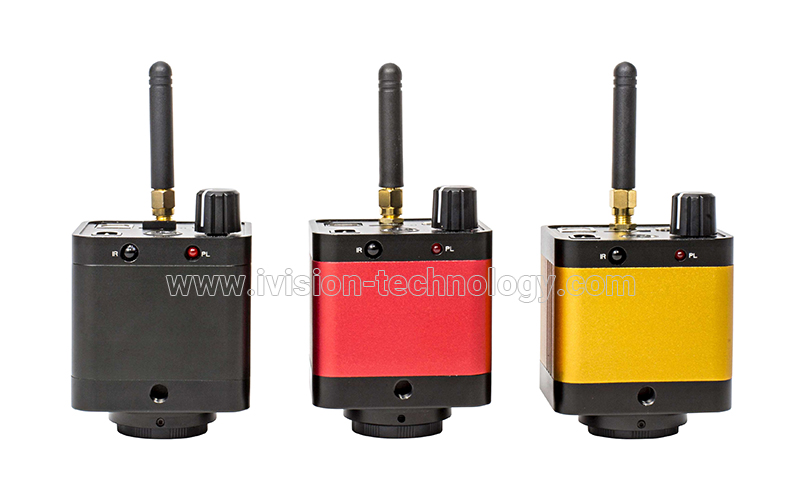

Colors: RED/GOLD/BLACK
Special: WIFI(Option)/Mouse Control
Weight: 185g(With WIFI)/ 175g(Without WIFI)
Product Details

Microscope

VDMS14M 14.0 MP Video Microscope from Youtube




Microscope

VDMS14M 14.0 MP Video Microscope






Specifications

VDMS14M 14.0 MP Video Microscope


Image Sensor14MP Panasonic 1/2.33 inch
Pixel Size1.43um x 1.43um
Video Resolution1080P30(Clear)、720P60(Smooth)
WIFI Output720x360@fps, Support Android and iOS (Optional)
Customized
Zoom Rate1X~16X
Exposure controlAE Lock, Exposure Compensation (10 Level Adjustable)
White BalanceAuto, Manual (R、G、B 10 level adjustable) 、Calibration
Grid8 Groups, Position, Color, Thickness Adjustable
MeasurementPoint, Line, Circle, Angle (Optional)
IR RemoterMax 5 Meters
WIFI AntennaSMA (Optional), Max 10 Meters
TF Card SlotMax Support 32GB
LensSuitable For C Mount or CS Mount
Comparison of PIPFull Screen, Left and Right, Up and Down, 1/4
TV Output

Support AV and HDMI 1080i 60fps

Mouse InterfacePS/2
HDMI InterfaceTYPE-A
USB InterfaceTYPE-B USB2.0
Dimension56mm(L)x 54mm(W)x 78mm(H)(Wifi Antenna Not Included)
Weight185g(With WIFI)/ 175g(Without WIFI)

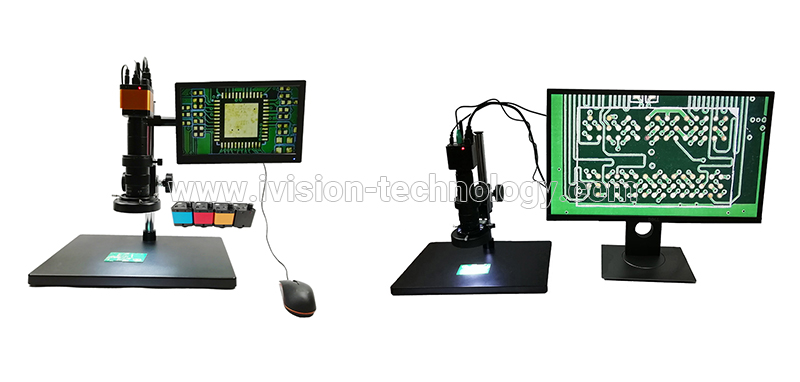

Microscope wih Screen

VDMS14M 14.0 MP Video Microscope



Microscope with Screen.jpg

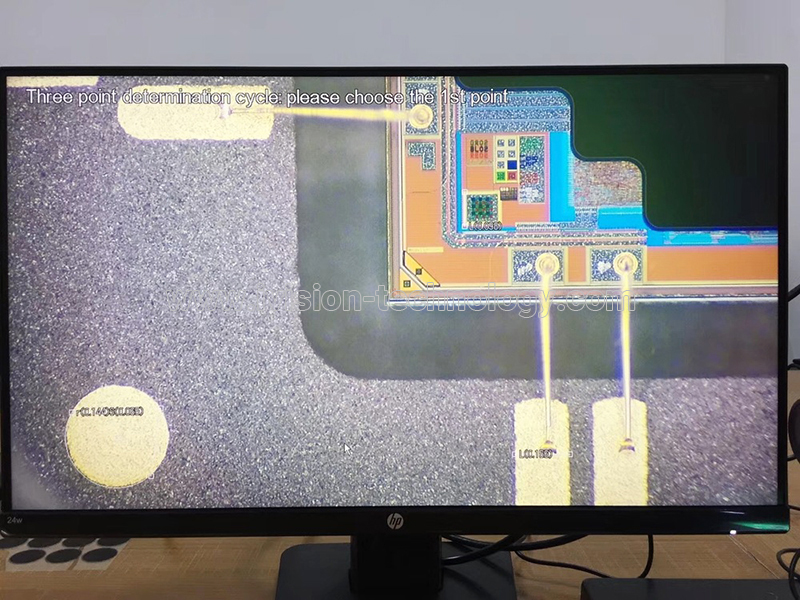

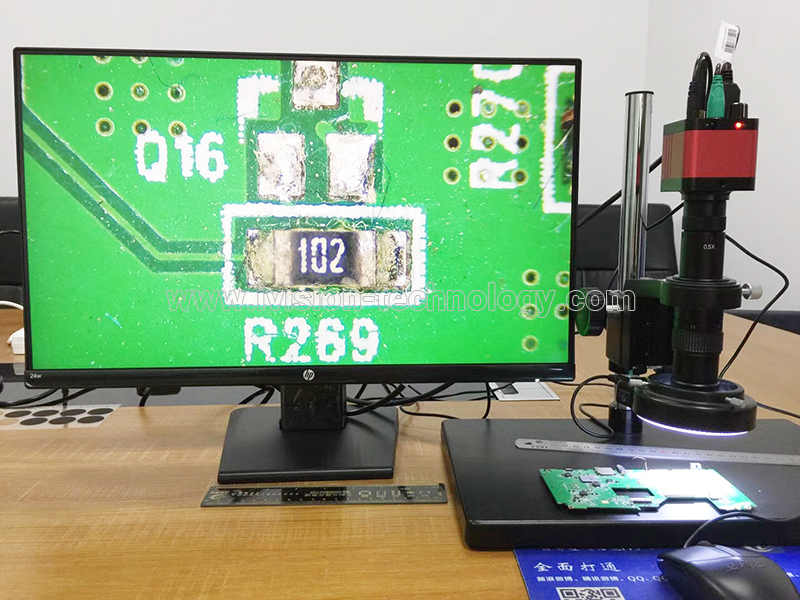

Performance

VDMS14M 14.0 MP Video Microscope


Microscope (1).jpg


Microscope (2).jpg
